1.0mm 5xD Solid Carbide Drill TiAlN Coated

£20.48
(Exc. 20% VAT)
£80.29
Save:
74%
In stock, immediate despatch
+
Part Number
8083230100
Range
General TiAlN Drills
Diameter
1.0mm - 1.4mm
Length
5 x Diameter (5xD)
Shank Diameter
3.0mm
Shank Style
Plain Shank
Through Coolant
No

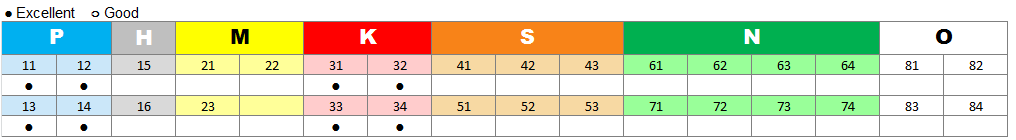

Will Cut Steel? (P-Blue)
Yes
Will Cut Stainless Steel? (M-Yellow)
No
Will Cut Cast Iron? (K-Red)
Yes
Will Cut Heat Resistant Alloys? (S-Orange)
No
Will Cut Non-Ferrous? (N-Green)
No
Will Cut Hardened Steel? (H-Grey)
No
Europa
Information
Cutting
Diameter
DC
Shank
Diameter
DMM
Flute
Length
APMX
Overall
Length
OAL
1.0 3.0 8 55

Features
Micrograin Carbide.
Solid Carbide Drill.
Self Centering.
TiAlN Coating.

Advantages
Self centering - centre drilling is not required.
Excellent positioning - bush is not necessary.
Special design: reaming not required, good chip removal, powerful drilling.

Application
Excellent for drilling
Steels (Magnetic soft steel, Structural steel, Carbon Steel & Alloy Steel) and all Cast Iron materials.




Technical Data & Info
